Product description: our demolition robot is a kind of high-power operation equipment with remote remote control and fine operation ability. It is equipped with flexible hydraulic wrist and multi-functional attachments.
Demolition Robots
$75000 – $83000
Demolition Robots

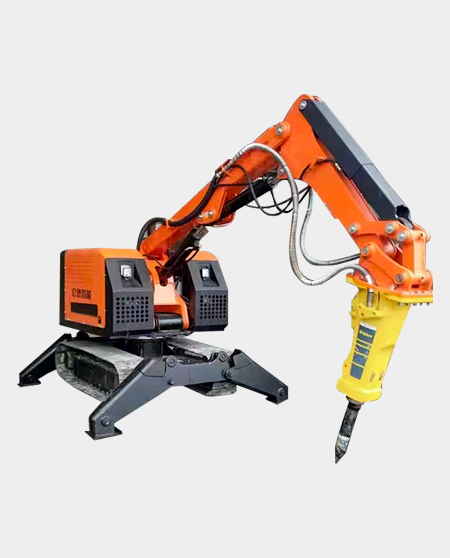

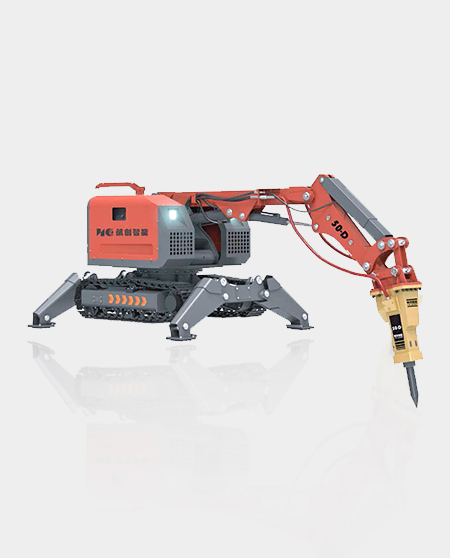

Multifunctional Demolition Concrete Robot
Demolition robot is a kind of high-power operation equipment with remote remote control and fine operation ability. It is equipped with flexible hydraulic wrist and multi-functional attachments. It can replace human beings in toxic (polluting), flammable, explosive, and Carry out omni-directional, remote-controlled crushing, shearing, and dismantling operations in dangerous and harsh environments such as bright collapse and strong radiation, which greatly improves working conditions and reduces casualties. The whole machine has high power, multiple degrees of freedom, and multiple disciplines. Features of high degree of integration and intelligence.
Specification
| Model | OK-170D | OK-200D | |
| Basic Parameters | Engine Weight(kg) | 1850 | 2600 |
| Max.weight of Attachment(kg) | 250 | 320 | |
| Track Width(mm) | 230 | 230 | |
| Speed(km/h) | 2.2/4.4 | 2.2/4.4 | |
| Swing Speed(r/min) | 8 | 8 | |
| Climbing Angle | 30° | 30° | |
| Driven Type(kw) | Electric Motor(22) | Electric Motor(30) | |
| Hydraulic System | System Flow(L/min) | 0~60 | 0~90 |
| System Pressure(Mpa) | 21 | 21 | |
| Working Pressure(Mpa) | 18 | 18 | |
| Control Method and Device | Portable Remote Control | ||
| Wireless Remote Control Distance(m) | Standard 150 meters,can be customized according to customer needs,the maximum control distance is 2000 meters | ||
| Working Range | Max.working Length(mm) | 4600 | 5100 |
| Max.working Height(mm) | 4800 | 5450 | |
| Max.working Depth(mm) | 2180 | 2600 | |
| Ground Clearance of Crawler | 110 | 110 | |
| Dimension(mm) | Height*Length*Width | 1511*3210*1080 | 1438*2970*1080 |
| Model | HCR-170D, HCR-200D |
|---|
