HWS-700TM Hydraulic Wall Saw

$20000

hydraulic Wall saw, also called hydraulic track sawing, is typically used to cut dimensionally precise door, window, and ductile vent openings in many types of materials.

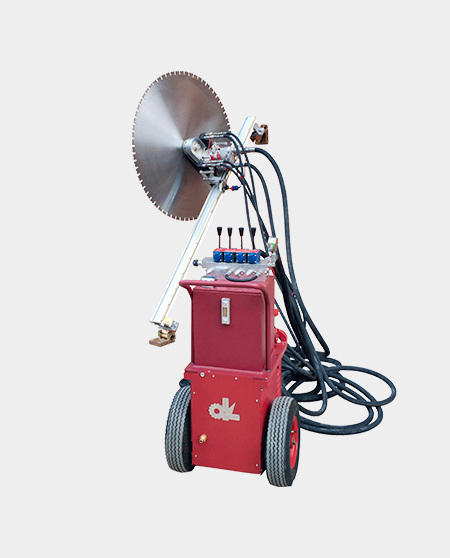

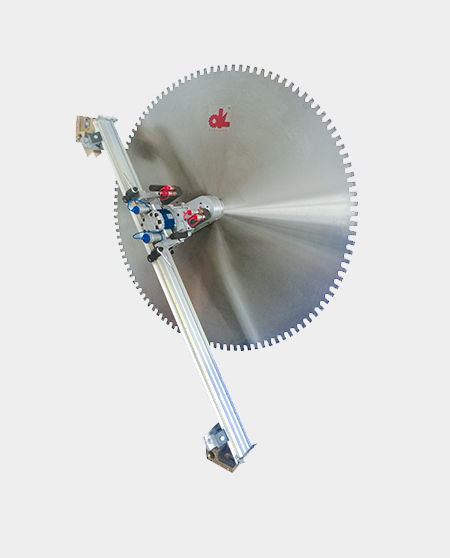

HWS-700TM hydraulic concrete wall saw

It is very powerful and designed to make your work more efficient. Use is a very powerful wall saws for cutting reinforced concrete, brick and other building materials, up to 710 mm thickness. It can be used for all kinds of openings and sawing including stair, bevel and flush cutting.

Technical data

OK-700TM Power pack
Max. output power 30kW
Electric motor Water-cooled
Rated voltatge(Wide voltage & Frequency) 370V-480V  50HZ/60HZ
IP protection code IP65
Pressure stages 3
Max.operating pressure 210bar
Oil flow rate 40-100l/min.
Dimensions(L*B*H) 500mm*520mm*1100mm
Weight 118kg

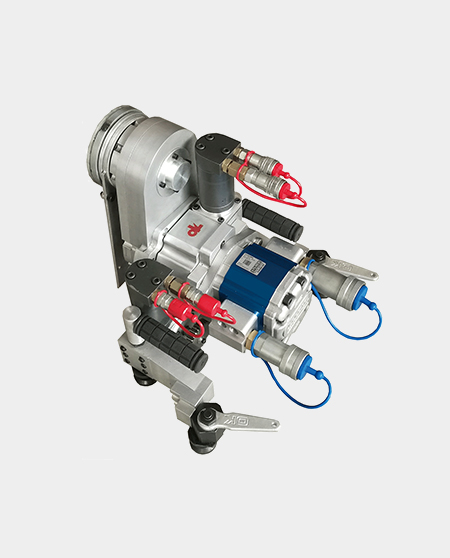

OK-700TM saw head
Saw blade diamteter range 800-1600mm
Max.Cutting depth 710mm
Max.oil flow rate 100l/min
Max.operating preesure 210bar
Gearing Gear
Rotation speed(with 700TM unit) 600/850/1400Rpm
Demensions(L*B*H) 400mm*420mm*400mm
Weight 37kg
Color

Gray, Green, Orange
